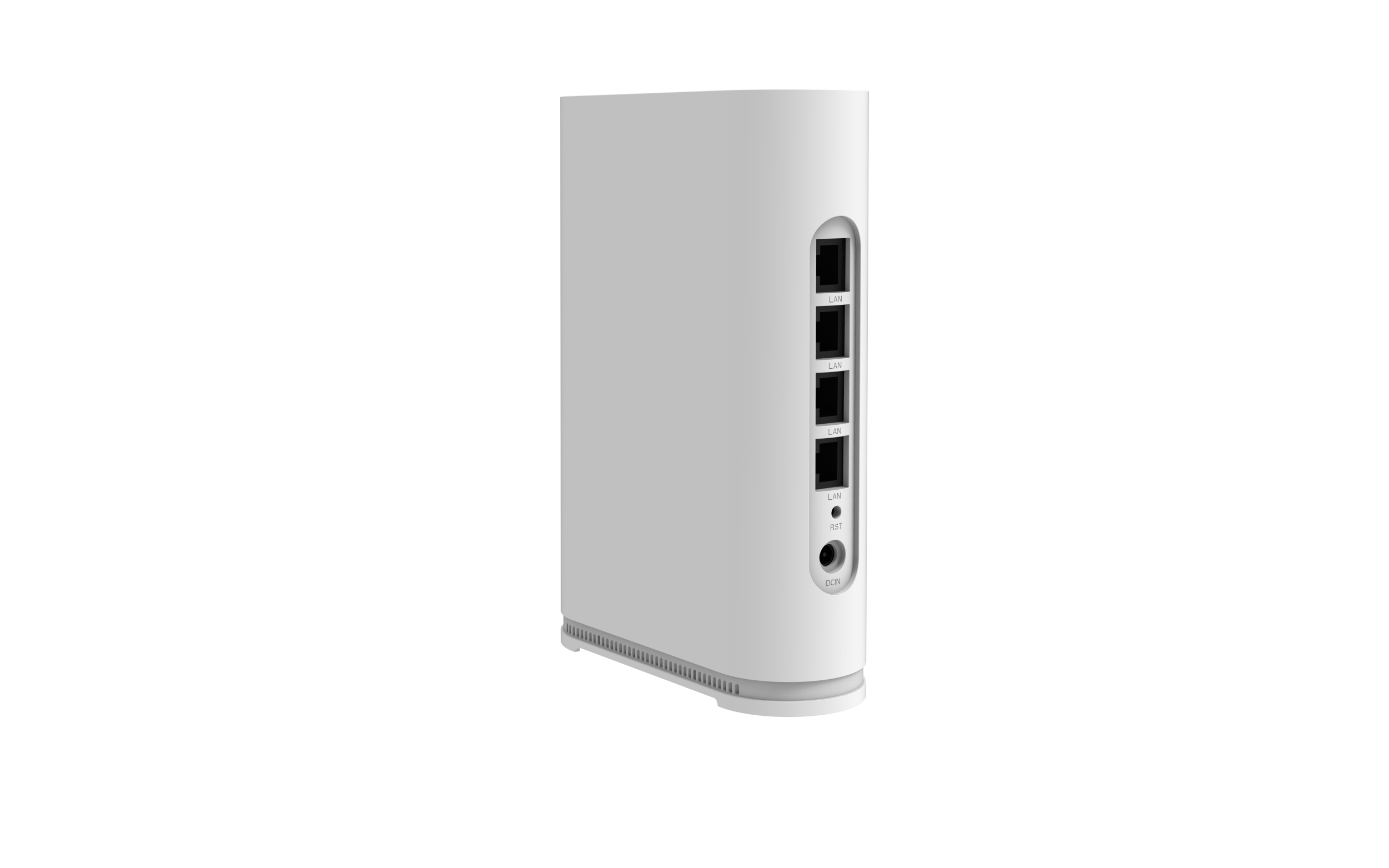

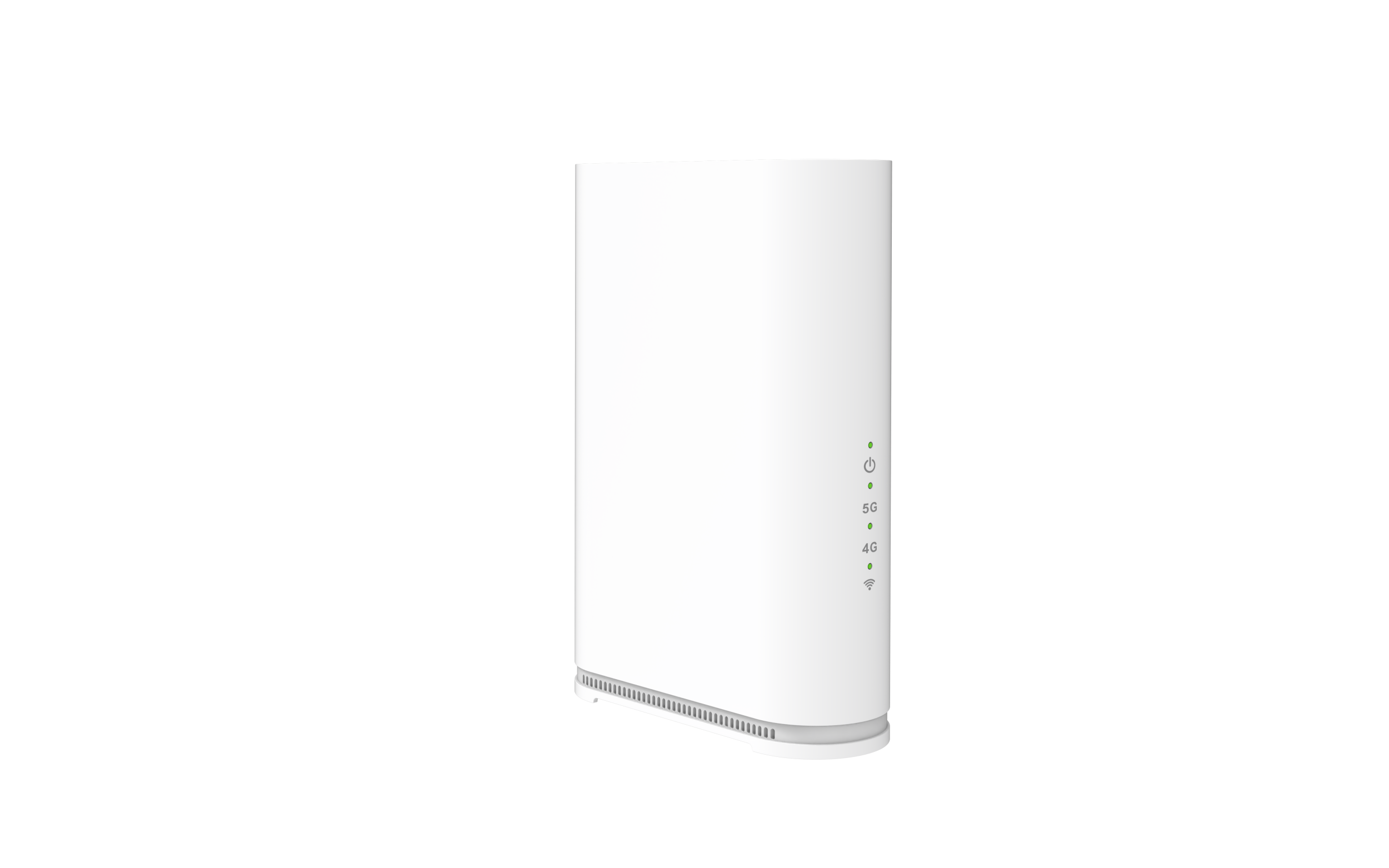

MC520, 5G CPE
| Category | Feature & specification | Description |
| Basical Information | Model Name | MC520 |
| Dimension | 136x52x190mm | |
| Weight | 516g | |
| Color | white | |
| Air Interface | Technical Standard | 5G/4G 802.11 a/b/g/n/ac/ax |
| Frequency | 5G：n1/n3/n5/n7/n8/n20/n28/n34/n38/n39/n40/n41/n77/n78/N50* 4G：B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41/B42/B43 | |
| WIFI | 2.4G&5.8G，802.11 a/b/g/n/ac/ax ；（2T2R） | |
| Performance | Maximum Data Throughput | NR：Downlink/Uplink （theoretical value）up to 4Gbps/900Mbps LTE：Downlink/Uplink up to 300Mbps/50Mbps |
| Hardware | Receive Diversity | support |
| MIMO | 4*4 （n1/n41/n77/n78） | |
| BB Chipset | ZX298501S 2GHz | |
| WiFi Chipset WIFI | AIC8800D80X2P AX1800 | |
| Memory | Built-in 4Gb DDR, external 4Gb NAND | |
| LAN/WAN | 4 Gigabit Ethernet port | |
| NFC | not supported | |
| T-card | not supported | |
| Adapter | 12V 2A | |
| USIM/SIM | 3FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal | |
| Battery | not supported | |
| LCD | not supported | |
| USB | Type-C | |
| Antenna | 6 antennas, including 4 modems, wifi 2 | |
| Buttons | Reset | |
| ESD | ESD Protection circuit, Contact±6KV、Air±10KV | |
| Software | UI | WebUI , Mobile WEB UI |
| Charge and discharge management of battery | not supported | |
| SW Update | Local Update, Fota | |
| WIFI Mode | AP | |
| WIFI Security | WPA/WPA2/WPA3 personal，AES-CCMP，SAE,WPS2.0 | |
| IPv4 | support | |
| IPv6 | support | |
| Firewall | Mac/IP address filter, Port filter,Port forwarding,UPNP,DMZ | |
| Data Statistics | support | |
| VPN Pass Through | PP2P/L2TP | |
| SIM Lock | support | |
| SNTP | support | |
| DMZ | support | |
| HTTP | support | |
| HTTPS | not supported | |
| Automatic APN matching according to USIM | support | |
| Traffic statistics | support | |
| Environment | Operating Temperature | Normal:-10°C to +45°C |
| Storage Temperature | -20° C to +60° C | |
| Humidity | 5%~ 95% |
