Chipset

RTL9607C-VB+RTL8812FR+RTL8192FR+LE9643+ASR1803

CPU Frequency

Dual-core 1GHz

Memory

256MB DDR

Flash

128MB NAND Flash

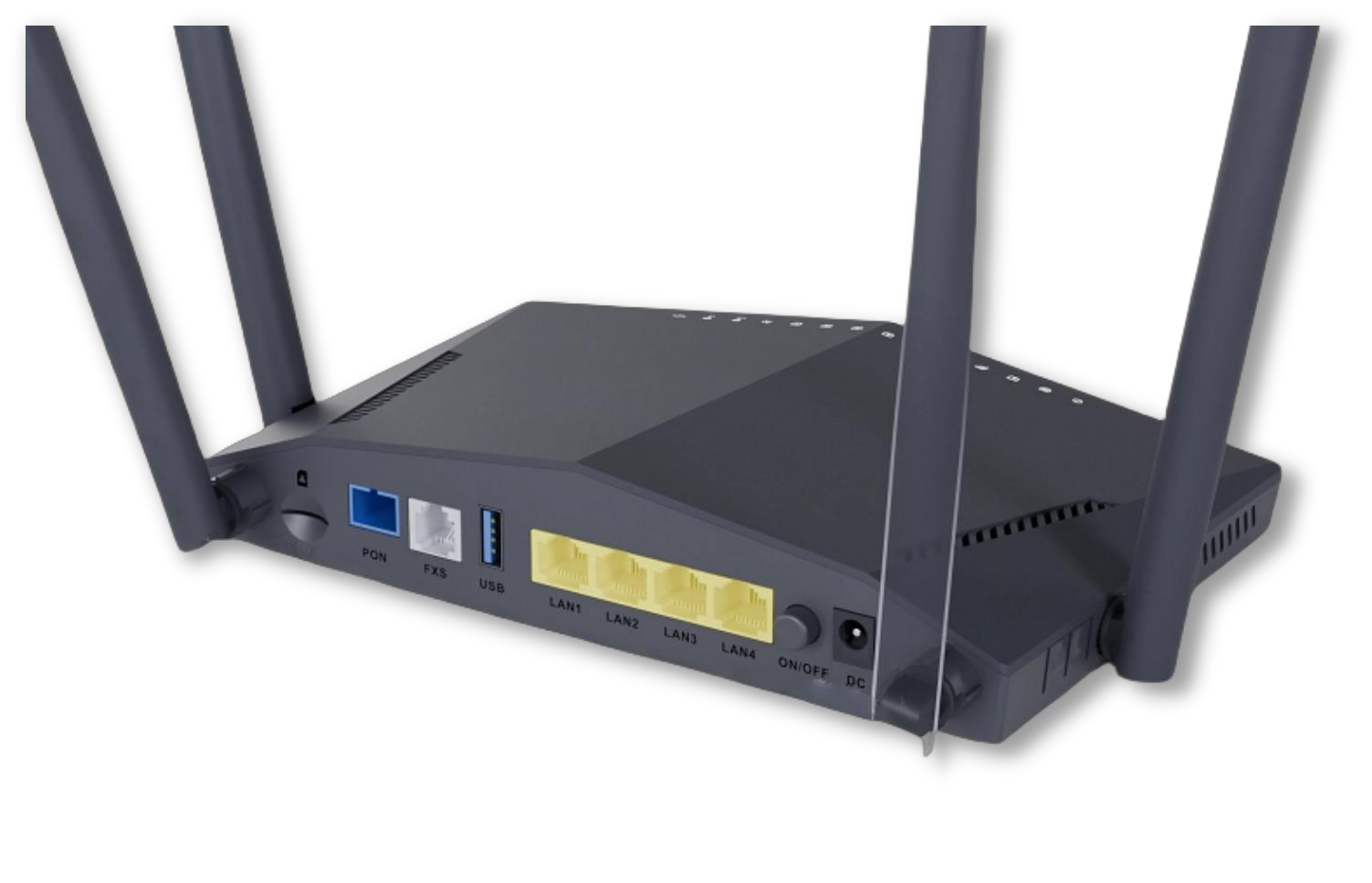

Device Interfaces

•  4 x 10/100/1000M LAN Ethernet

•  1 x WPS Button

•  1 x Reset Button

•  1 x Power Jack

•  1 x Power Switch

•  1 x Phone Jack

•  1 x SIM Card Slot

•  1 x USB 3.0

PON

•  Supports1244.16Mb/s US and 2488.32Mb/s DS bit rate

•  Power dissipation < 1.5W

•  Commercial case temperature range of -10°C~85°C

•  Maximum link length of 20km on Single Mode Fiber

•  Aligned with ITU-T G.984.2/G.984.5

•  1310nm DFB laser Burst-mode Transmitter

•  1490nm Supertia Continuous-mode receiver

•  SC/APC Pigtail

•  Average Launch Optical Power 2.5dBm (Max:4 , Min:0)

•  Min receiver Power SEN: -27.5dBm

•  LOS of Signal De-assert Level Min: -31dBm

•  LOS of Signal Assert Level Max: -33dBm

WIFI

•  2T2R 2.4GHz 802.11b/g/n, 300Mbps

•  2T2R 5.8GHz 802.11ac, 867Mbps

WIFI Antenna

2 x 5dBi external dual-band antenna (2.4G and 5.8G WIFI Antenna Combiner)

LTE

CAT 4 DL 150Mbps; UL 50Mbps

LTE Antenna

2 x 5dBi external antenna
